Strander Condition Monitoring

With Strander Condition Monitoring, HAEHNE offers a comprehensive system for condition monitoring in stranding machines. This system centrally collects all data relevant to machine monitoring from the rotating components and transmits it via radio. The transmitted data is consolidated by the Fusion Center outside the rotating zone, where it can be analyzed and monitored via the dashboard.

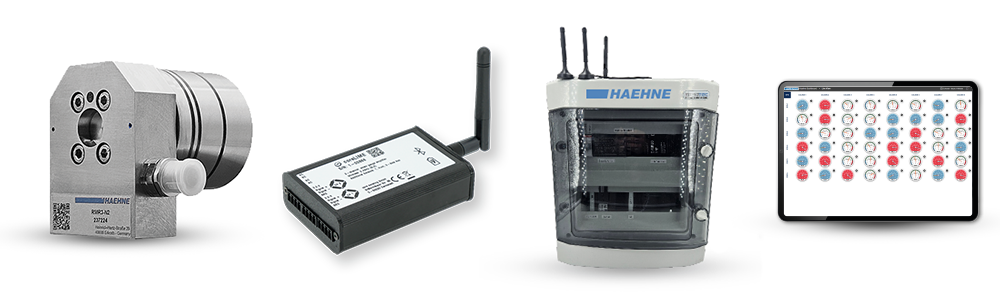

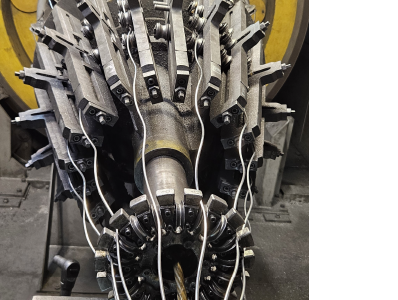

Condition Monitoring for Stranding Machines

  • Wire tension
  • Braking force
  • Cradle lock
  • Rotation
  • Temperature

Sensor signal for wire tension

  •     Electronic unit in an aluminum tube housing
  •     For high-speed stranding machines
  •     Measurement free of centrifugal and Coriolis forces
  •     Rated forces for a wide range of applications
  •     Accuracy class: ±0.3%
  •     Wide measurement range up to 100:1

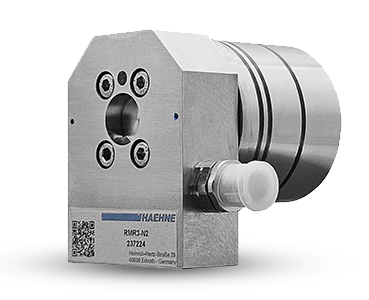

Force measuring roller RMR3-series

Brake force sensor signal

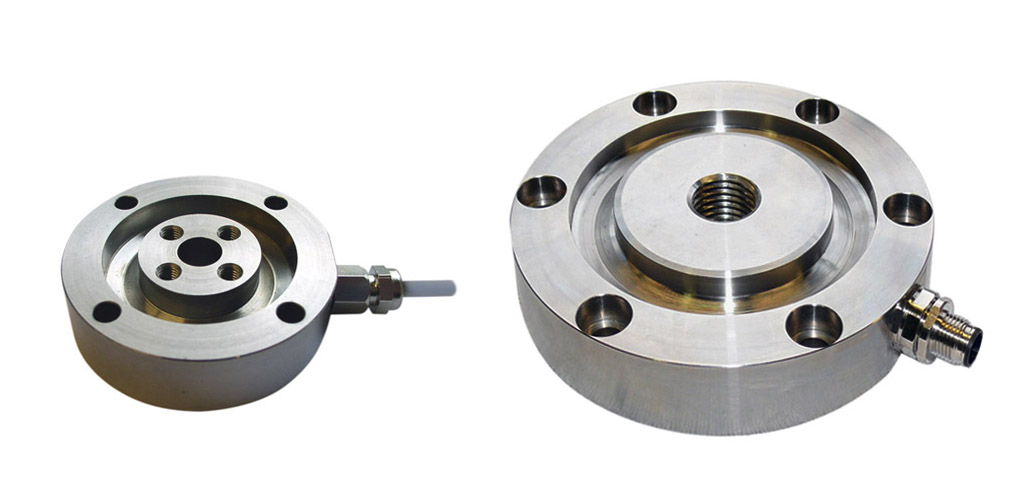

Ring force seonsor RKS-Serie

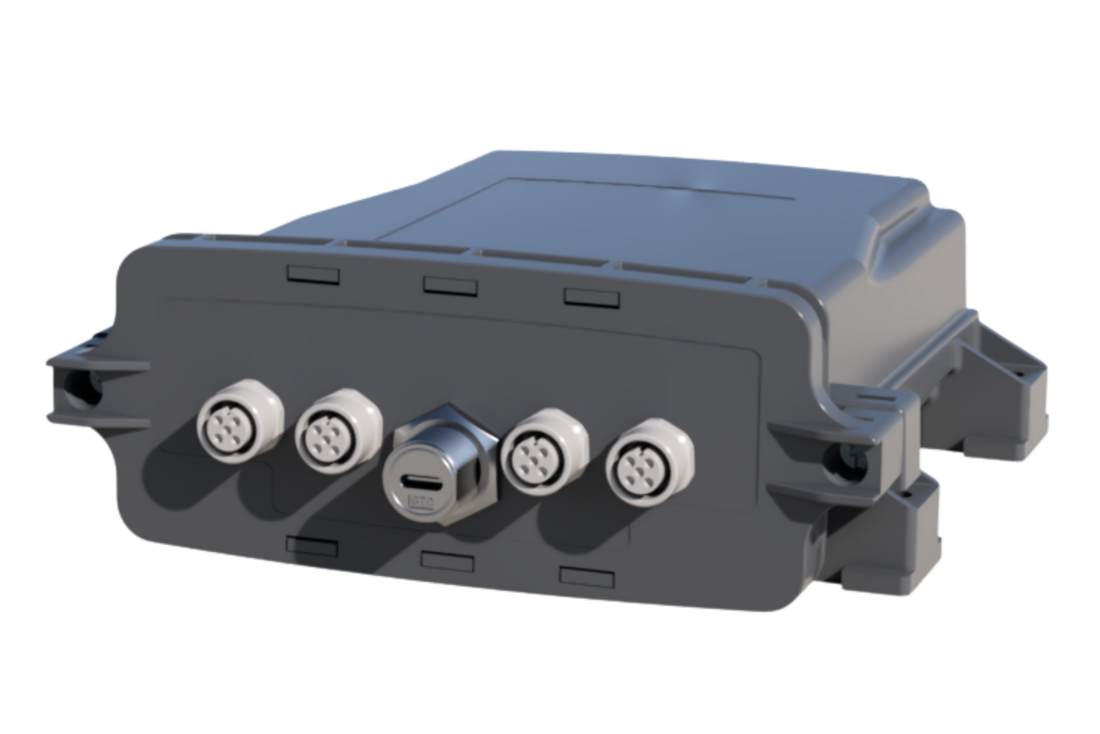

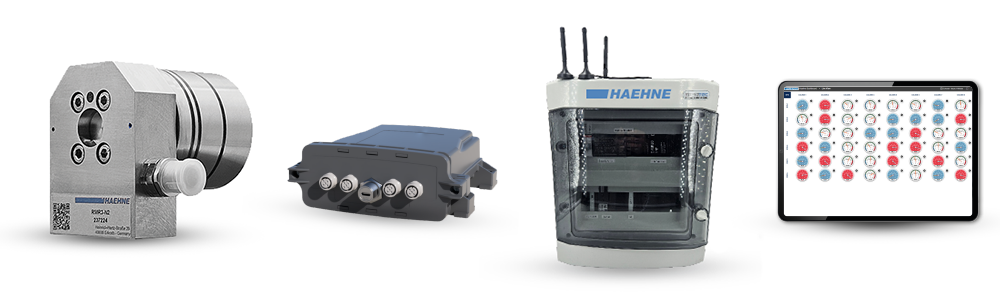

DFT Transmitter Unit

Mounted on the rotating part of the machine – transmits:

  • Wire tension
  • Braking force
  • Sleeve closure monitoring
  • Rotational speed
  • Temperature signals and more

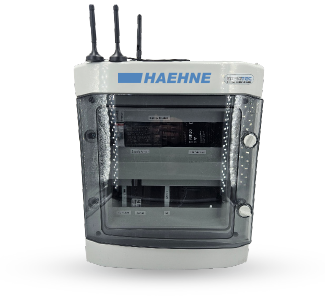

DFC Receiver Unit

Receives all data from the DFT module and is mounted outside the rotating machine. The DFC processes the received data for comprehensive process monitoring and analysis.



DFM Digital Monitoring and Analysis Unit

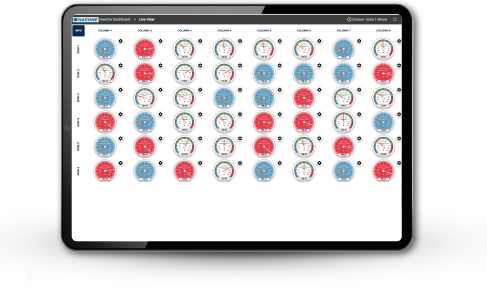

Graphical display of the received measurement signals for the operator.
