Measuring Electronics

Our measuring electronics are used to display, transfer and record measurement data. In principle, all our strain gauges are suitable for the connection of all force sensors, regardless of whether they were manufactured by us or not. In addition to analog amplifiers with voltage output or current output, we can also pass on our measurement data with all current interface protocols. For demanding control tasks, our multifunctional control units are the right choice. The highest signal processing speed and interference-free measuring signals are our main aim.

A comparison table of all HAEHNE measuring amplifiers will help you with your selection.

Which signal do I get at which nominal force? With our gain calculator, you can easily convert the mV signal of the sensor into your amplifier output signal, also for Profinet or Profibus interfaces. Try it!

We would gladly advise you, contact us.

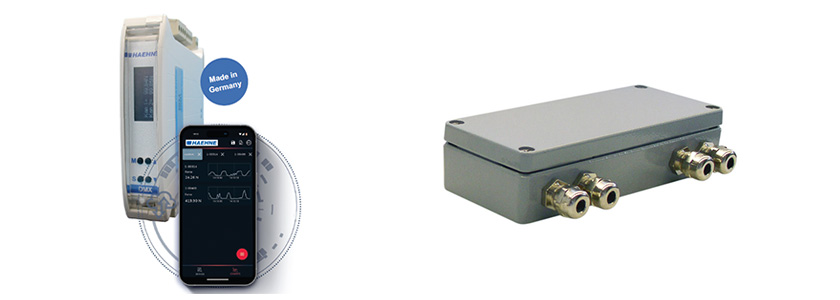

Analog Measuring Amplifier

HAEHNE amplifiers convert the strain gauge signals into reliable analog signals (4 ... 20 mA or 0 ... 10 V). They are available in field housings for heavy duty applications as well as for DIN rail mounting in the control cabinet. Depending on the requirements, the measurement values can be adjusted to analog or digital signals.

IO-Link Measuring Amplifier

The measuring amplifier CA-IO is used where sensors with full resistance bridges (strain gauge force transducers) are to be connected to IO-Link. Remote parameterization and diagnosis of force sensors is quick and easy with IO-Link technology. In addition to HAEHNE's own devices, strain gauge sensors from other manufacturers can also be connected to the analog input of the measuring amplifier and evaluated.

Fieldbus Strain Gauge Amplifiers

For direct integration of the measurement signals into the machine controls, HAEHNE amplifiers can provide the signals in all valid fieldbus and Industrial Ethernet interfaces, such as Profinet, Profibus, Ethernet, CANOpen and CC-Link.

USB-Measuring Amplifer

The measuring amplifier CA-USB connects the force sensor with the USB port of a PC. The configuration and evaluation software offers all sensor, measurement and documentation settings, as well as the settings for the output of sensor information. It ensures the graphic display of the measured values and the direct reading of the measured data in CSV format.

Multifunctional Controller

For the process or load monitoring in machines HAEHNE offers PID controllers with very easy to use adjustment features. In addition to the very common closed loop control applications, they can also be used for limit force monitoring or angular or multiple wrap angle corrections.

Ancillary Equipment

Appropriate accessories can be provided for all measuring amplifiers. In addition to a changed power supply, a separate display can also be installed.
If the distance between the force sensor and the control cabinet is too great, a preamplifier with 100-fold strain gauge signal boosting helps.

Mobile Force Measuring Amplifier

For decentralized force monitoring, HAEHNE offers a mobile measuring amplifier for recording the forces between rollers, for reference measurement or zero point adjustment directly in the machine. Many load cells from the HAEHNE range can be combined with the battery-operated measuring amplifier.

We develop and manufacture a broad product program for amplifier units for recording and evaluating the measurement data from sensors with strain gauges. For each of our DMS sensors, we offer the optimum measuring electronics and deliver you a directly usable measuring chain.

In addition to measuring amplifiers with analog output with or without display, we also offer digital single and multi-channel amplifiers with an interface, either for the DIN rail or in the field housing.
