Web Tension With Measuring Rolls
Measuring rolls are complete mechanical systems for measuring web tension. You can either obtain all the components you need to install a measuring roll from a single source, or you can obtain a measuring roll with internal force sensors.
We basically distinguish between single-sided and double-sided measuring rolls. Different types are used depending on the dimensions and force range.
For your tailor made roll please use our online inquiry forms
- Measuring roll with bearing both sides or

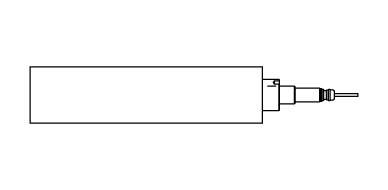

- Measuring roll with cantilevered design, bearing one side
or
send us your request via e-mail
This is also possible:
Sensors for built-in roll mounting, also for flatness measurement rolls
For special requirements, especially for large roll diameters, HAEHNE can supply sensors for mounting into the roll shell. This makes it possible to build segmented rolls, e.g. for flatness measurement and also for nip force measurement in winders.
Available Designs
| Versions | Standard Versions | Other Available Versions |
|---|---|---|
| Material | Aluminum | Steel, Stainless steel, CFRP, plastic |
| Surface coatings and treatments | Belt grinded | Chromium, nickel, teflon, rubber, plasma coated, hardcoated / anodizet |
| Surface structure | Fluted, grooved, rhombic, etc. | |
| Surface roughness | Rz 8-12 µm | on customers request |
| Balance quality | Q 2,5 | Q 6,3 ; Q 2,5 ; (acc. to VDI 2060) |
